Actifsource

Actifsource V11.0.0

Actifsource code generator for any programming language

Feature Screenshots

  • 6750 1 InlineFunction
  • 6750 2 InlineFunctionImpl
  • 6750 3 Preferences
  • 6752 1 createresourcepropertywizard

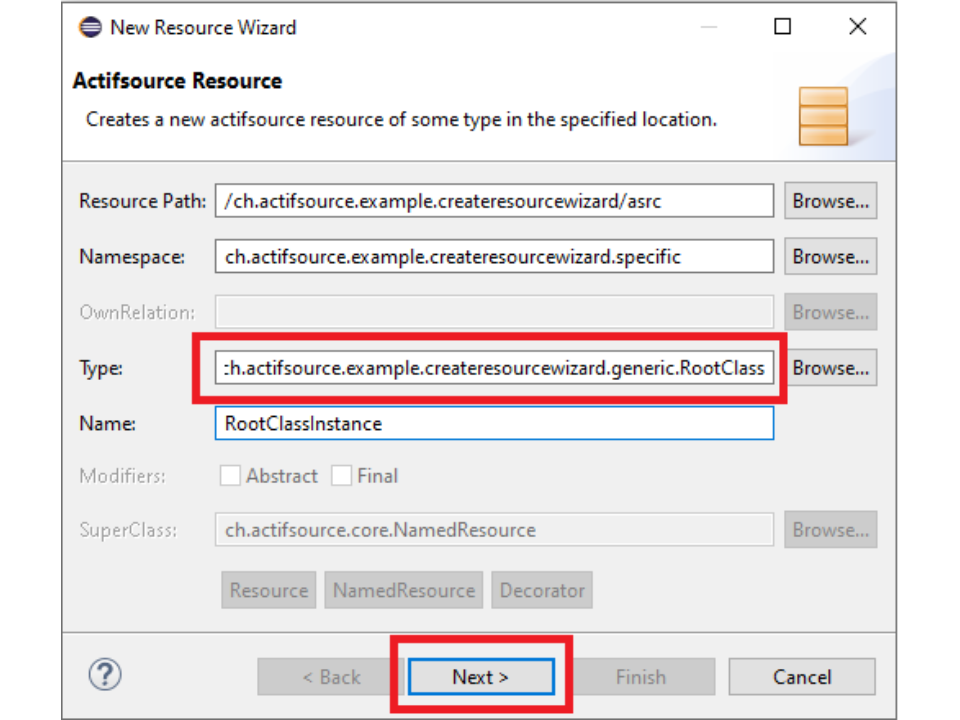

  • 6752 2 wizardpage1
  • 6752 3 wizardpage2
  • 6752 4 wizardAspect
  • 6753 1 AnimationType
  • 6754 1 OwnPrimaryKeyManager
  • 6754 2 OwnPrimaryKeyManagerInstance
  • 6754 3 OwnPrimaryKeyManagerTemplate

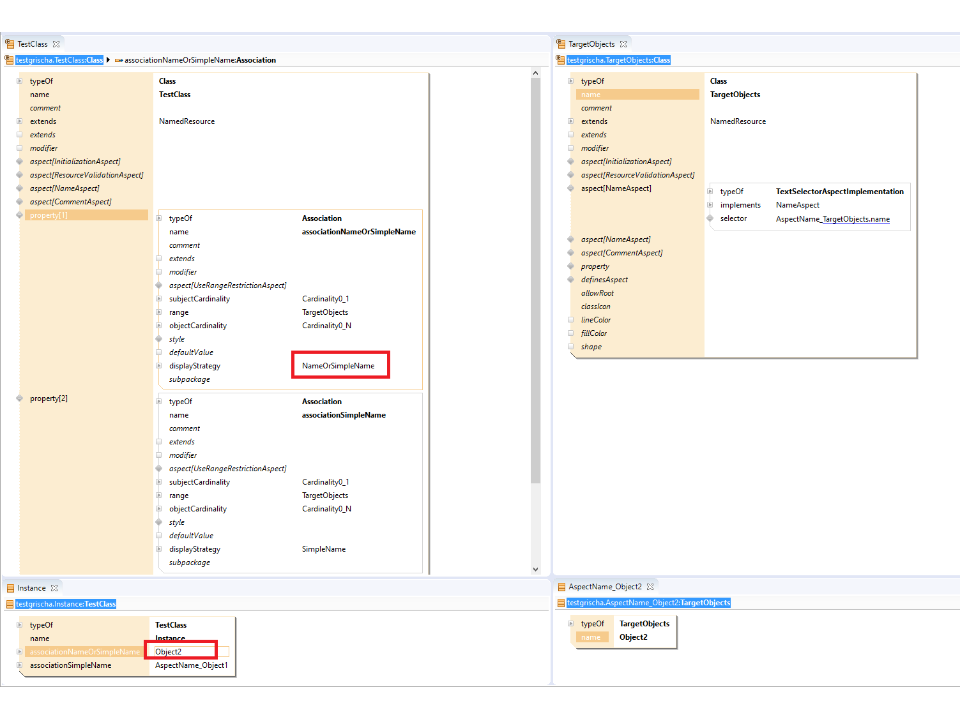

  • 6757 1 NameOrSimpleName
  • 6758 1 DerivedRelation1
  • 6758 2 DerivedRelation2
  • 6758 3 DerivedRelation3
  • 6758 4 preferences
  • 6758 5 DerivedRelation4
  • 6759 1 ColorBorder
  • 6760 1 LinkOn
  • 6760 2 LinkEditor
  • 6761 1 Selector
  • 6765 1 Validator1

Features

Bug Fixes

License Restrictions

  • Use the Actifsource Community Edition for NON-commercial projects only

Known Issues

Required bundle 'system.bundle' needed by 'javax.xml' was not found

  • This bug was introduced in Eclipse 4.12
  • Please use at least Eclipse 4.13 RC1 or RC2
  • https://download.eclipse.org/eclipse/downloads/

Using OpenJ9


New Update Site



Installing Actifsource

  • Actifsource sets the memory settings automatically after installing and restarting
  • The Restart-Button displayed after the plugin installation, restarts eclipse in such a way that it still uses the old memory settings
  • To prevent OutOfMemoryExceptions you need to completely close eclipse (File, Exit or Close-Button) and start it again

Installation might fail

  • If the installation fails, delete the .eclipse folder in the user folder
  • Please note that passwords from updates sites will get lost
  • See also bugs.eclipse.org

Recommended System Requirements

We recommend the following system requirements.

System
Recommendation
Java Version 8
Eclipse 4.8
VM OpenJ9
OS Win 10, gtk Linux
OS Architecture 64 Bit
Processor 64 Bit
RAM 8 GB
Disk SSD


Configuration (eclipse.ini)

We recommend the following settings in the eclipse.ini file.

Property
Value
Minimum Memory Size -Xms800m
Maximum Memory Size -Xmx4000m
Java Virtual Machine -vm
C:\path\to\OpenJ9\javaw.exe


Used Open Source Libraries

We have used the following open source libraries in our products. Many thanks to all the developers for providing their great work to the community.

Library
License
annotations.jar
LGPL v2.1/BSD
ant-contrib-1.0b3.jar Apache
antlr-2.7.6.jar BSD
antlr-3.1.1-runtime.jar BSD
bcprov-jdk16-145.jar MIT
commons-collections-3.2.1.jar Apache
Eclispse 4.8.x EPL
jdom.jar Apache
jsr305.jar BSD
jug.jar LGPL v2.1
logging-1.0.3.jar Apache
objenesis-1.0.jar Apache
xerceslmpl.jar Apache
